To create a Site-to-Site VPN tunnels, the first step is to enable Site-to-Site VPN feature on your existing VPC subscriptions. If you do not have existing VPC subscription with us, please deploy VPC first (for instruction, click this link).
Enable Site-to-Site VPN Feature

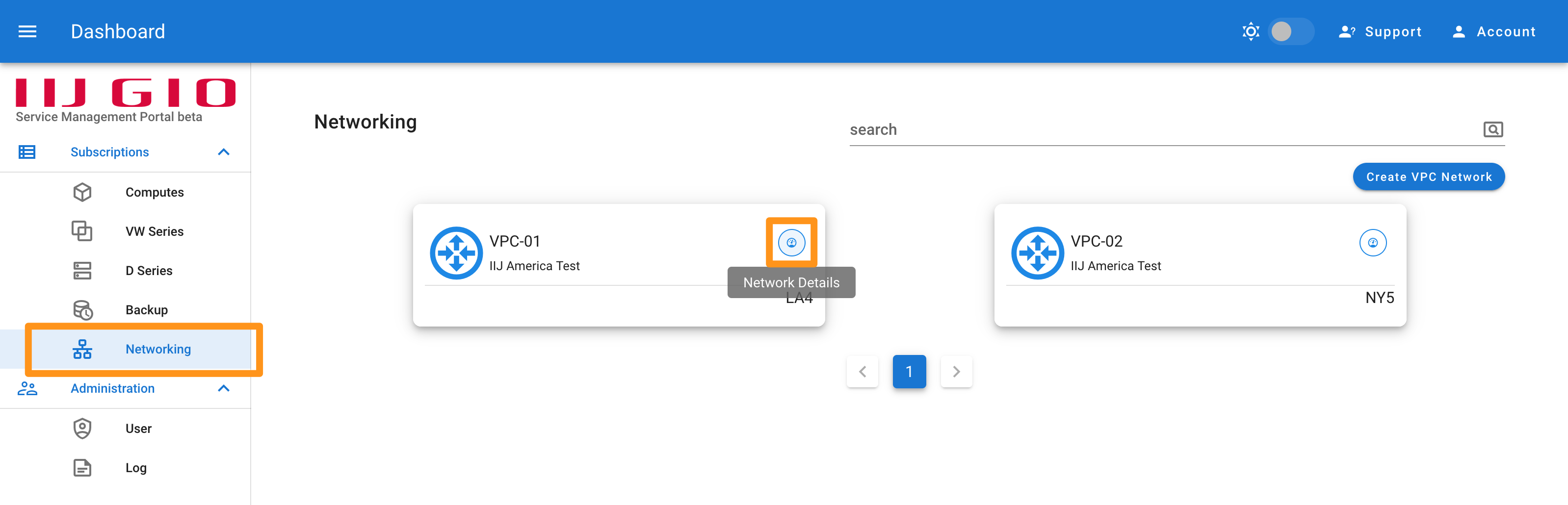

1. Click "Network" from left menu, then select your VPC and click "Network Details" button.

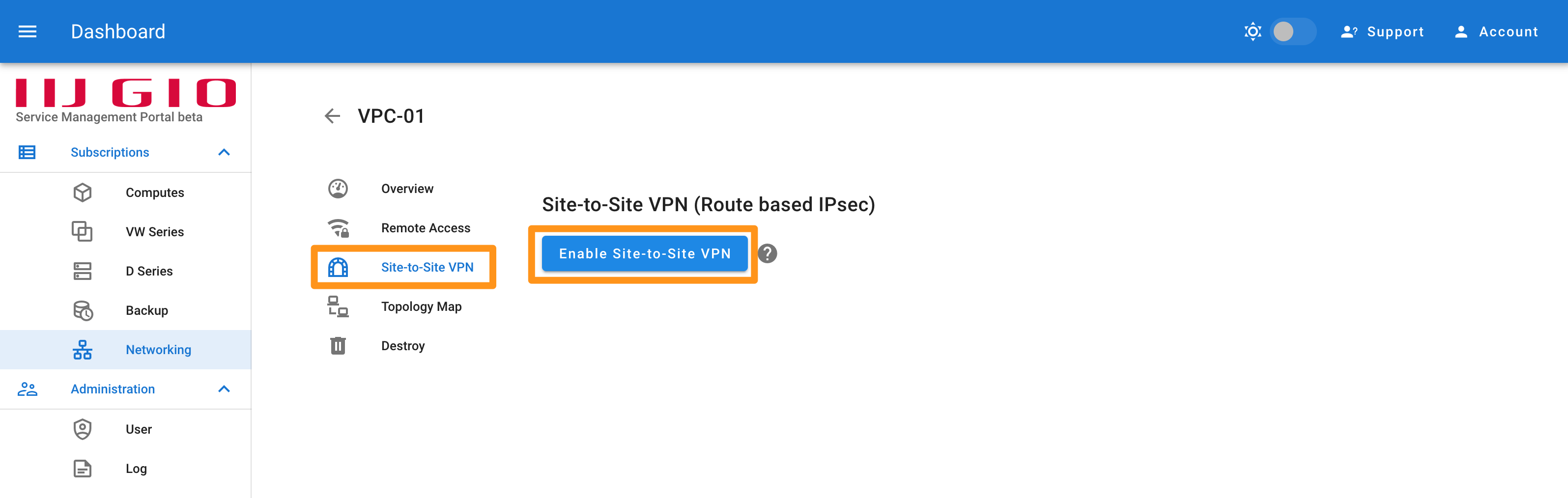

2. Click "Site-to-Site VPN" menu, then click "Enable Site-to-Site VPN" button.

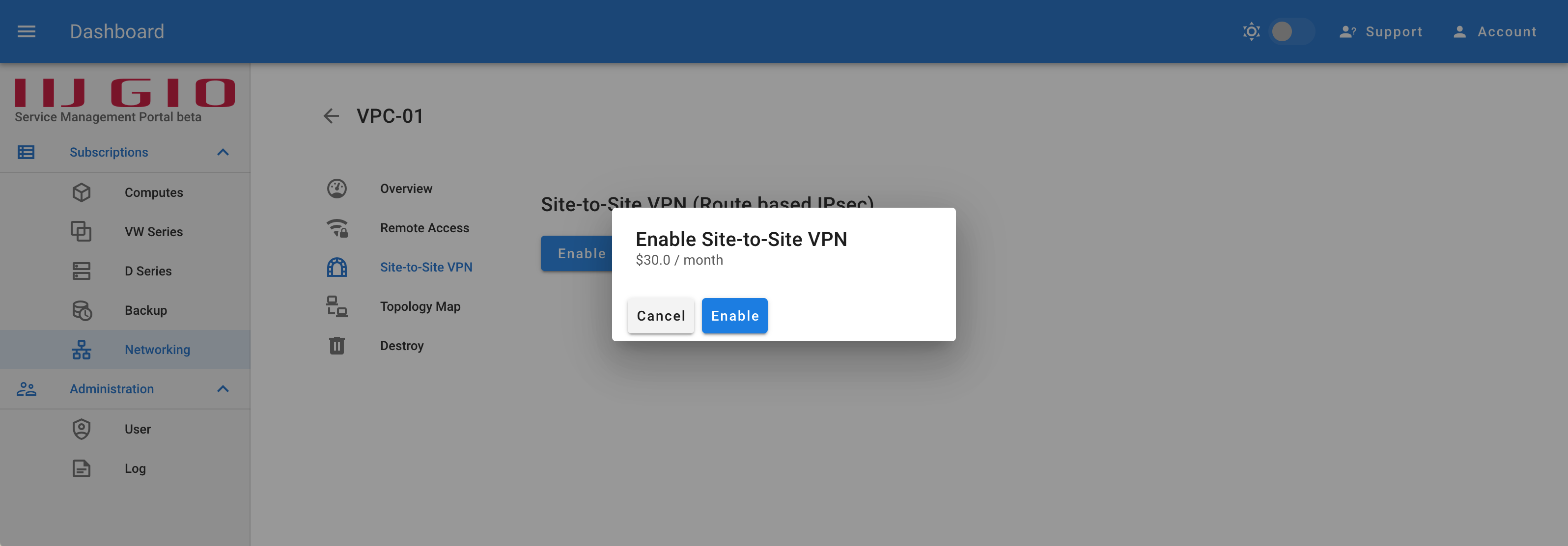

3. Read the notification, then click "Enable" button.

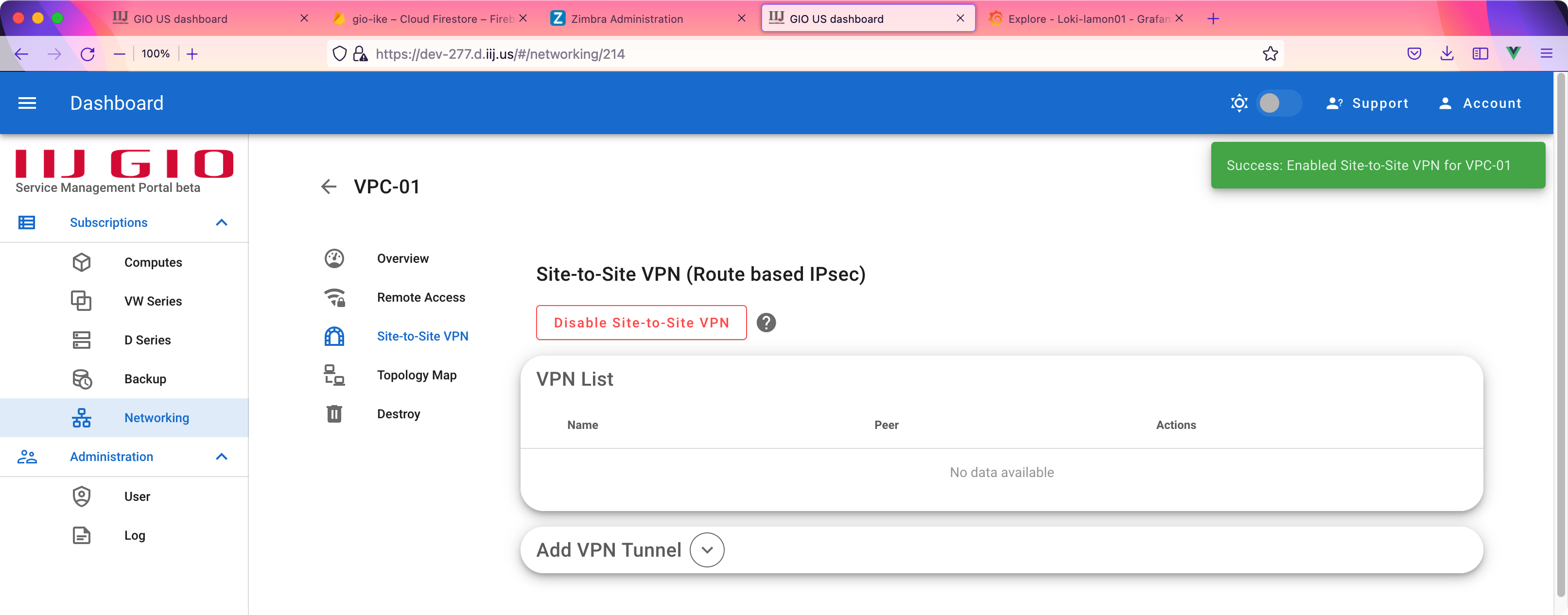

4. Within a few seconds, Site-to-Site VPN feature is activated and ready to add VPN tunnels.
Add a Tunnel

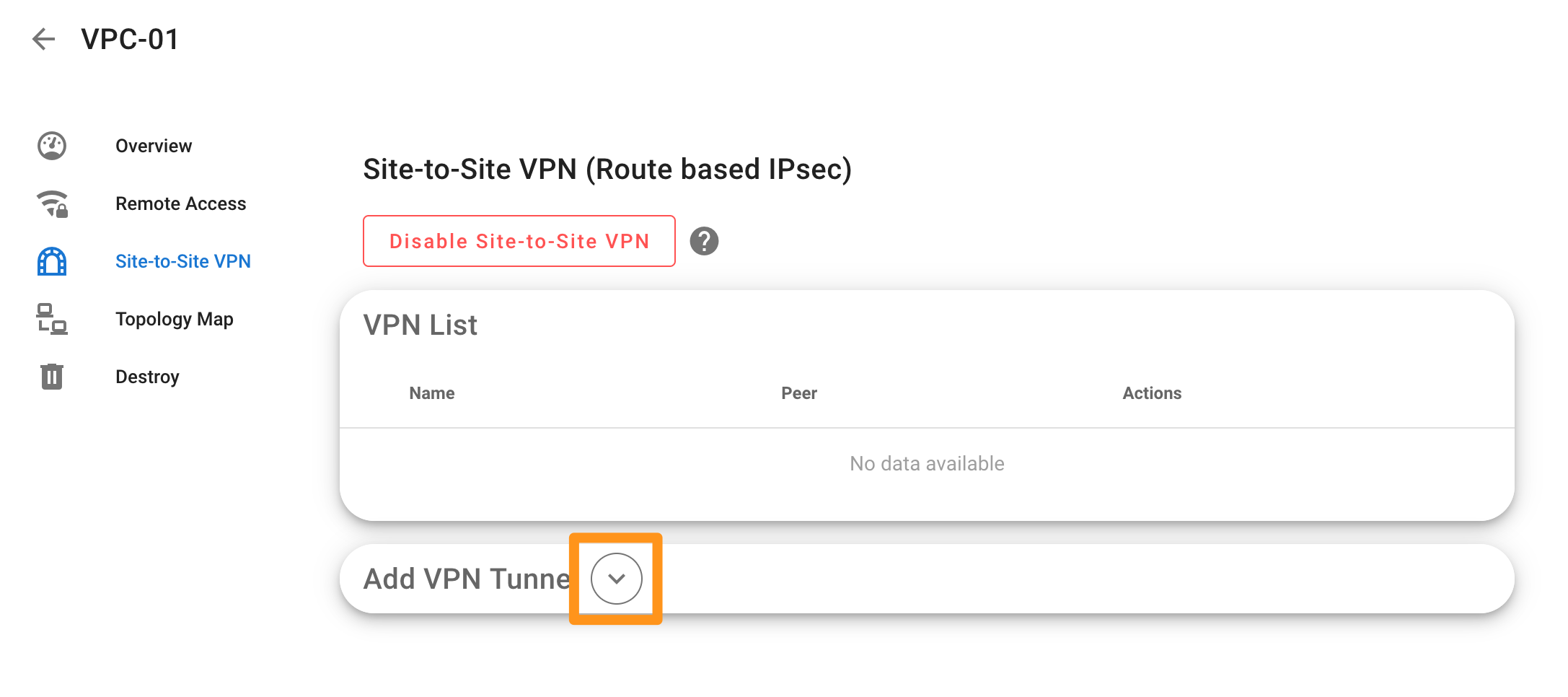

1. Expand "Add VPN Tunnel" panel by clicking down arrow button.

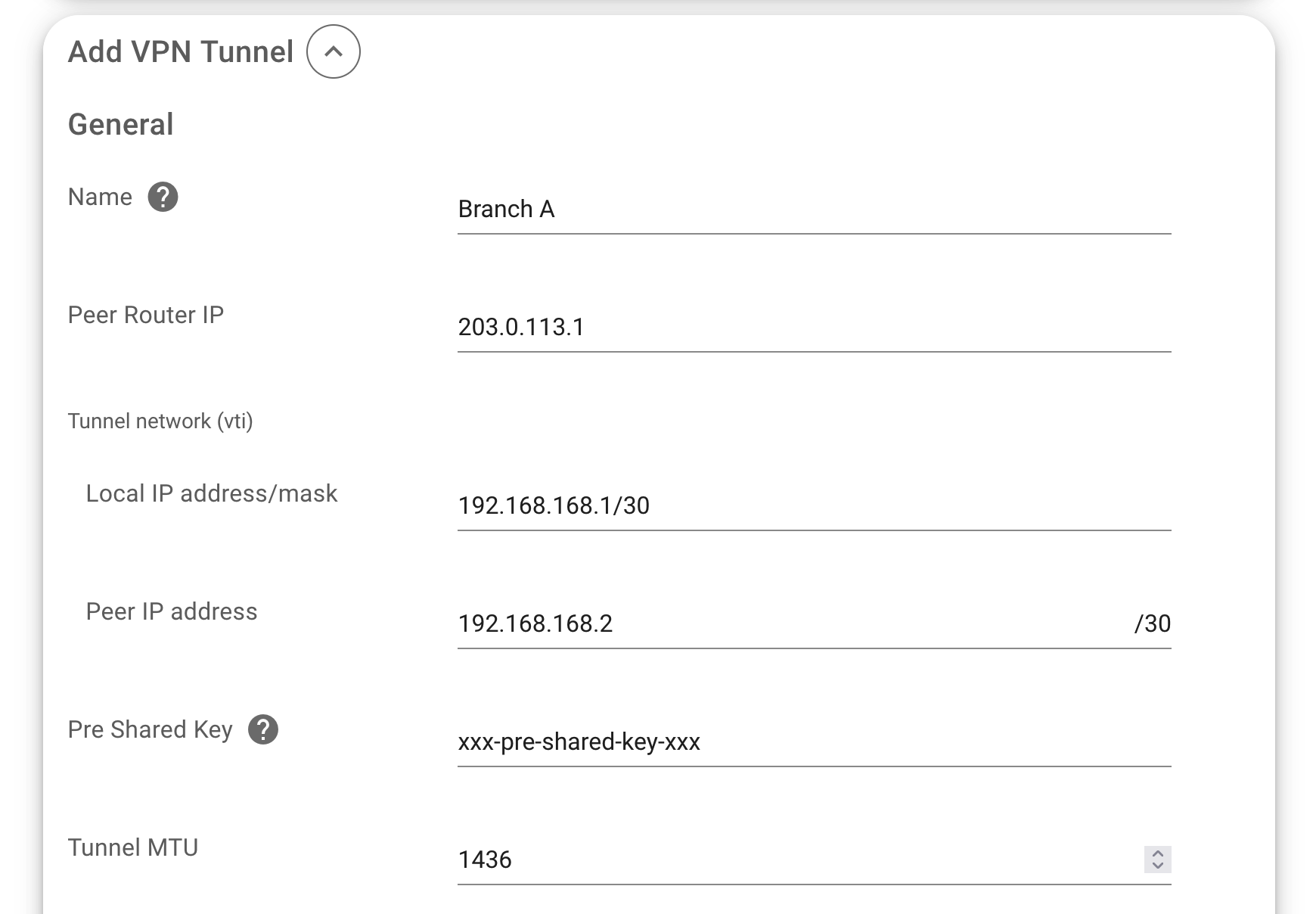

2. Enter required parameters. Refer Site-to-Site VPN Specs page for other default parameters.

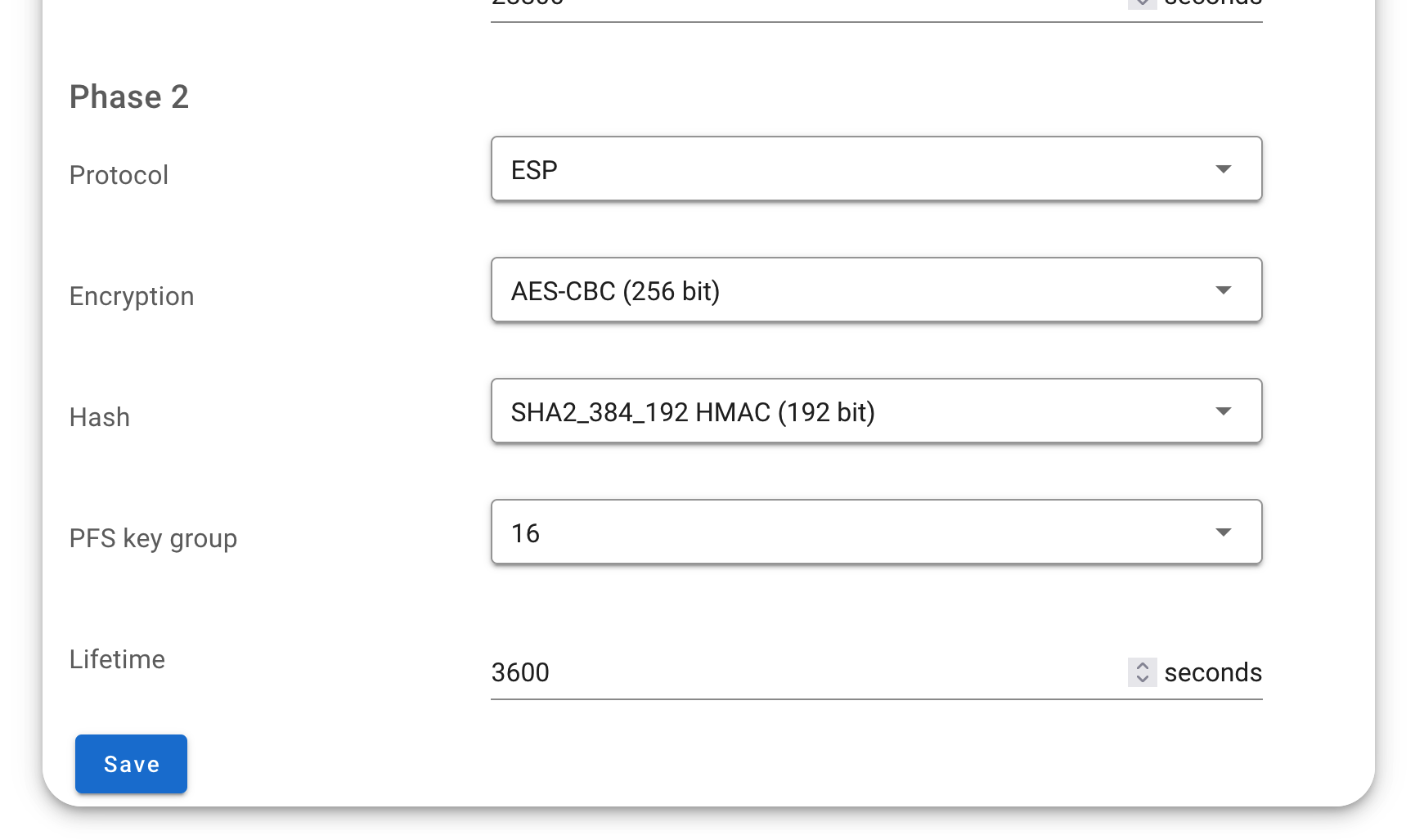

3. Click "Save" button.

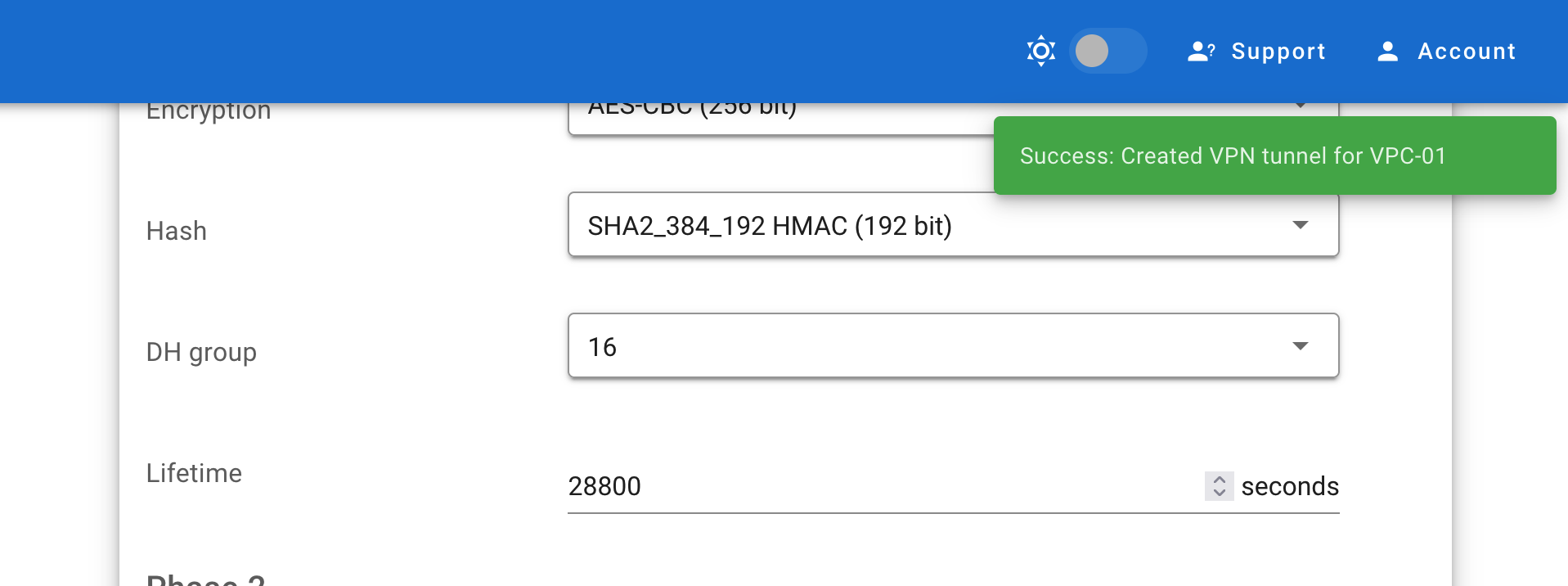

4. A notification bar appears at upper right corner of the window when the operation finishes successfully.
Show Configurations of a Tunnel

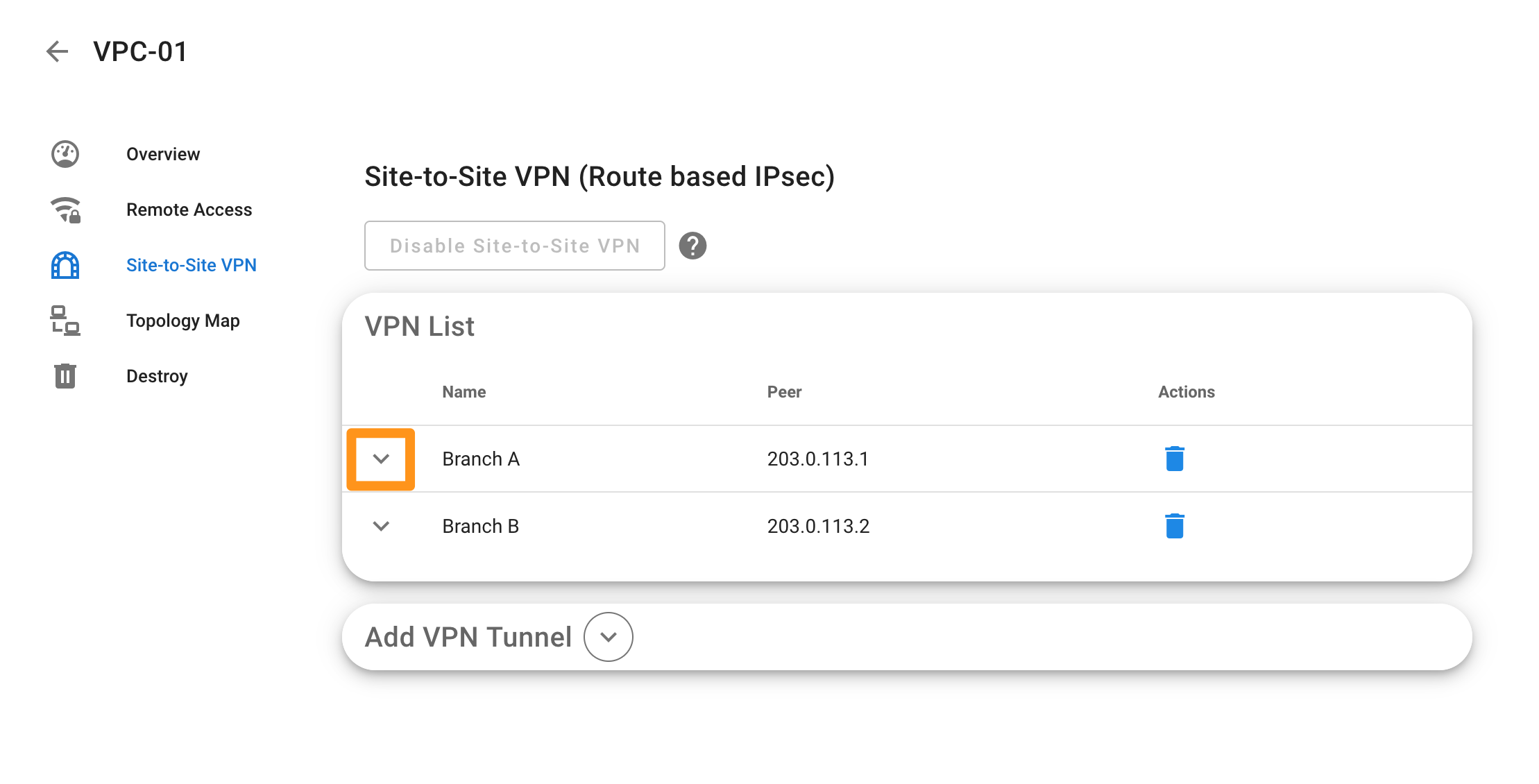

1. Click down arrow button of the target tunnel.

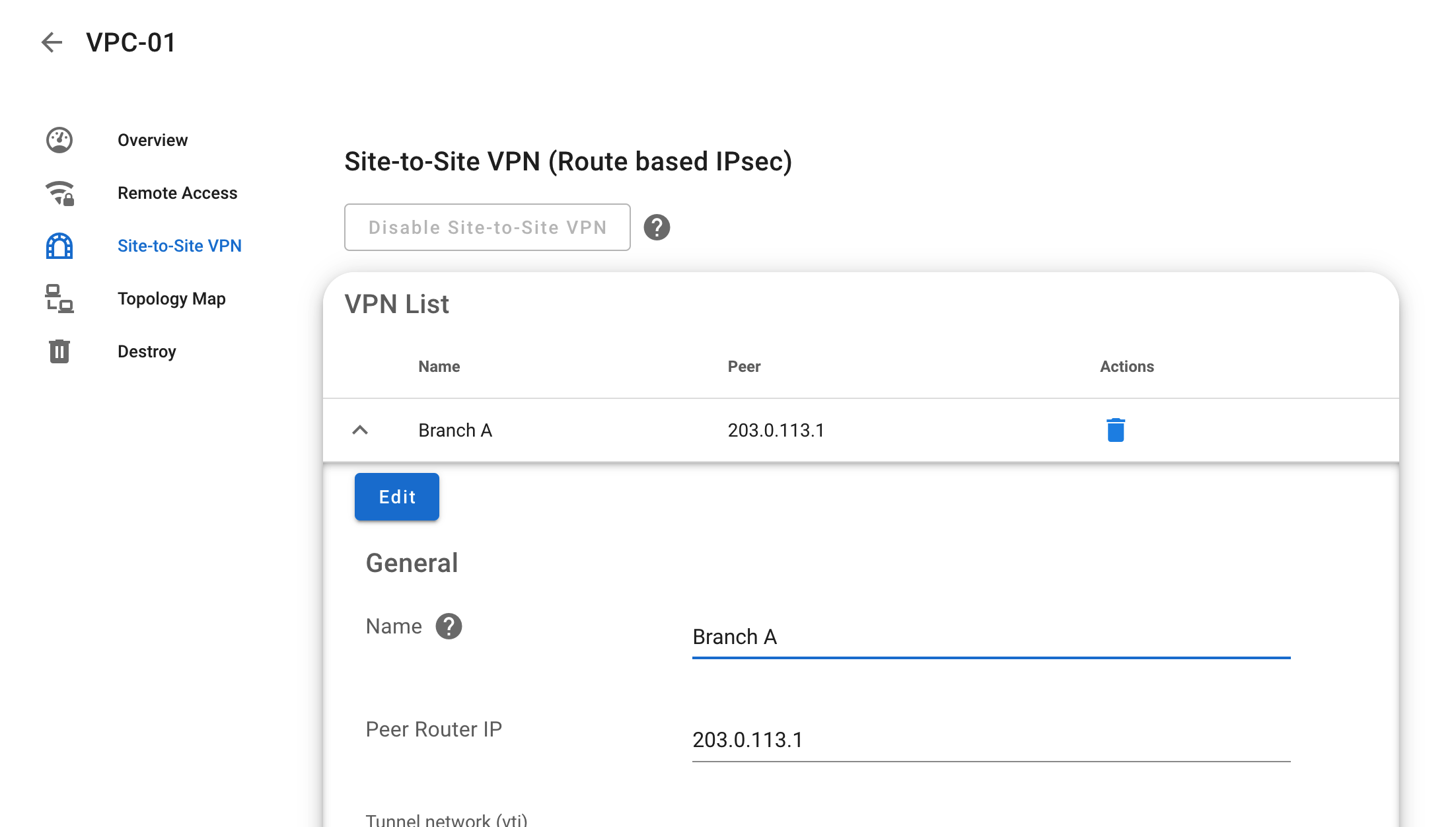

2. Configuration drawer is expanded.
Modify a Tunnel
1. Expand configuraiton drawer by clicking down arrow button of the target tunnel.

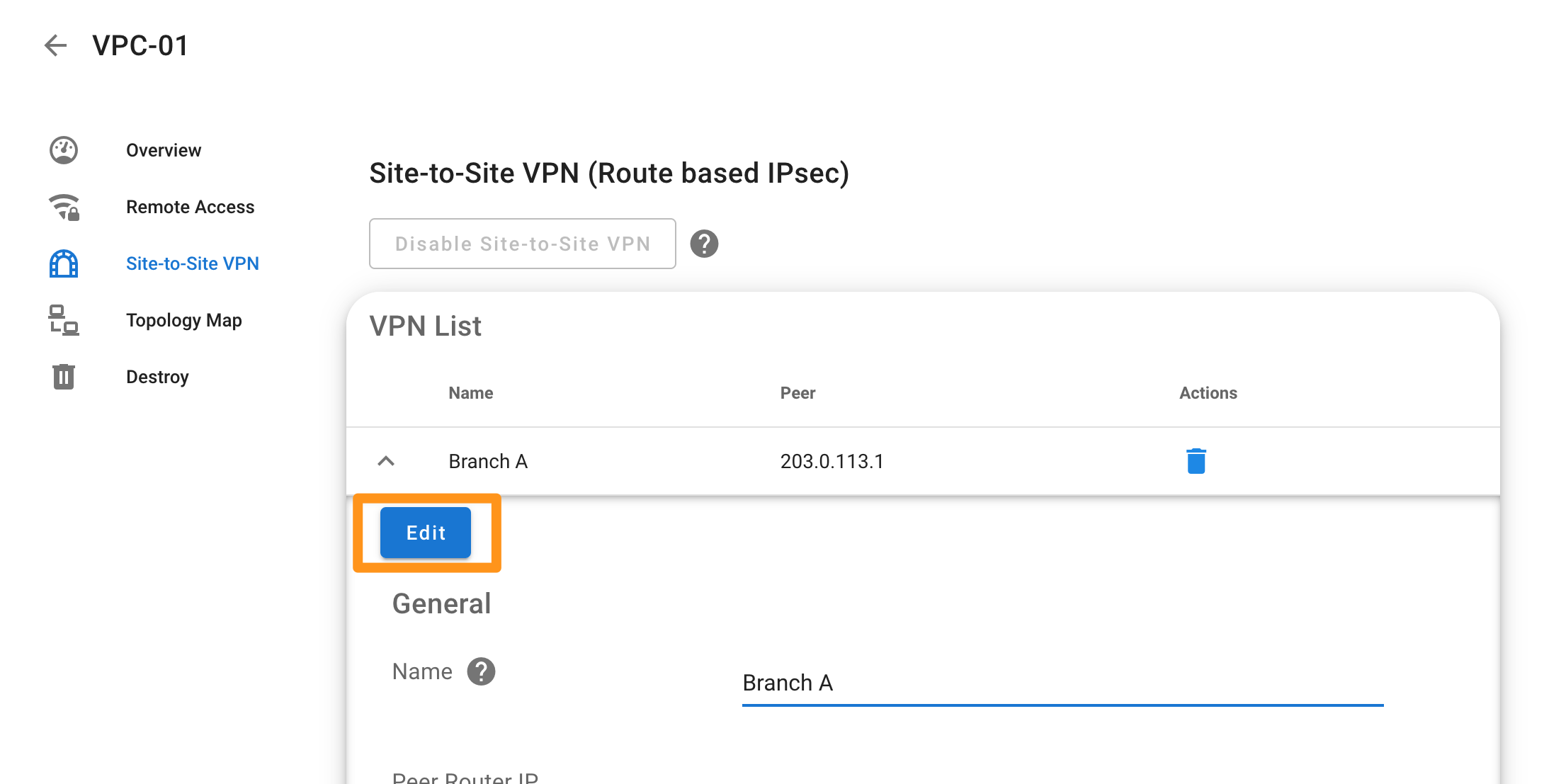

2. Click "Edit" button.

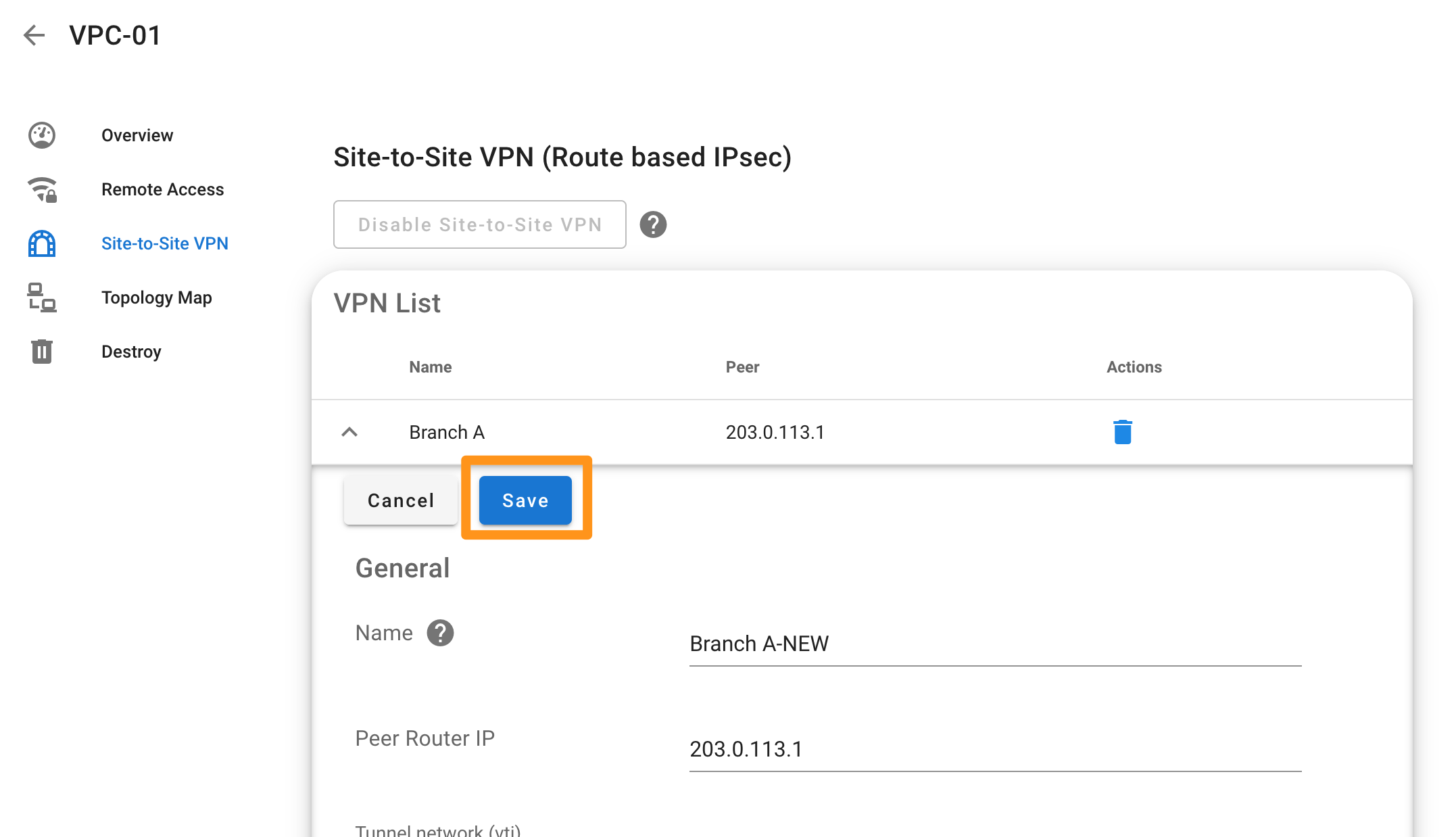

3. Modify parameters, then click "Save" button.

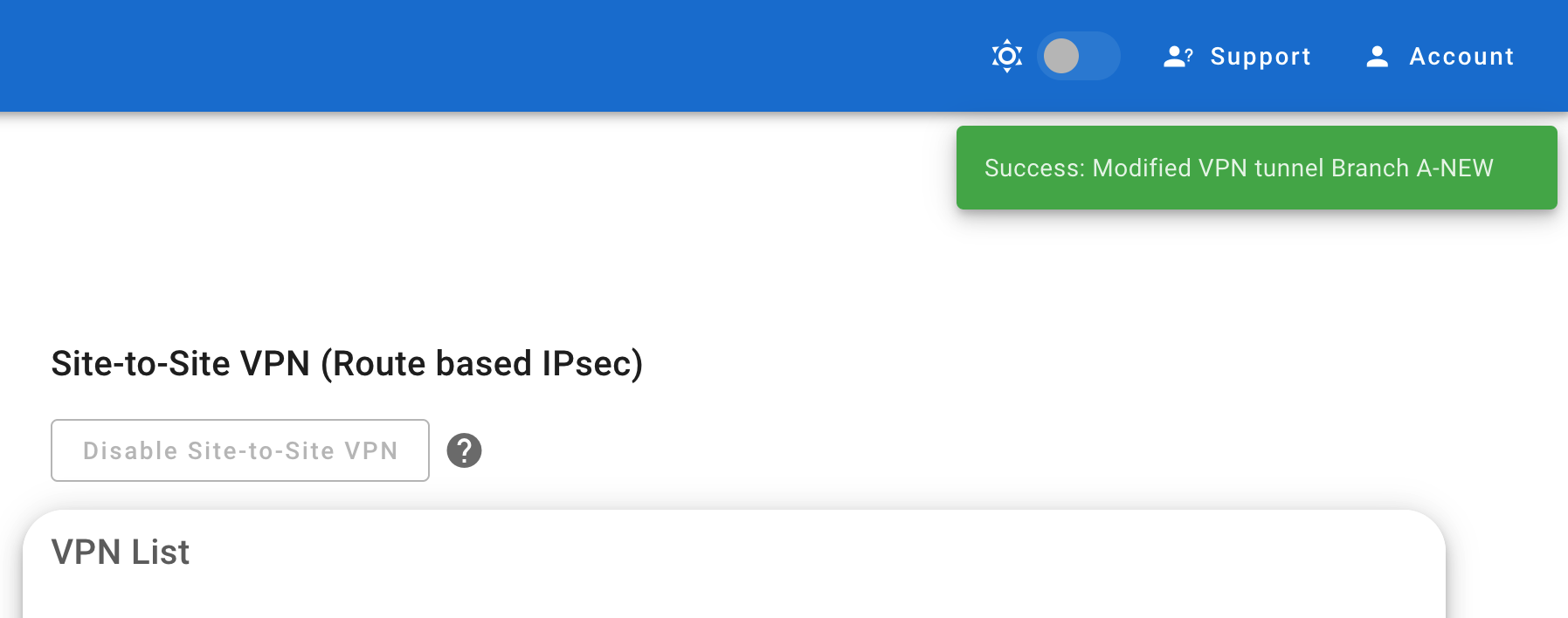

4. A notification bar appears at upper right corner of the window when the operation finishes successfully.
Delete a Tunnel

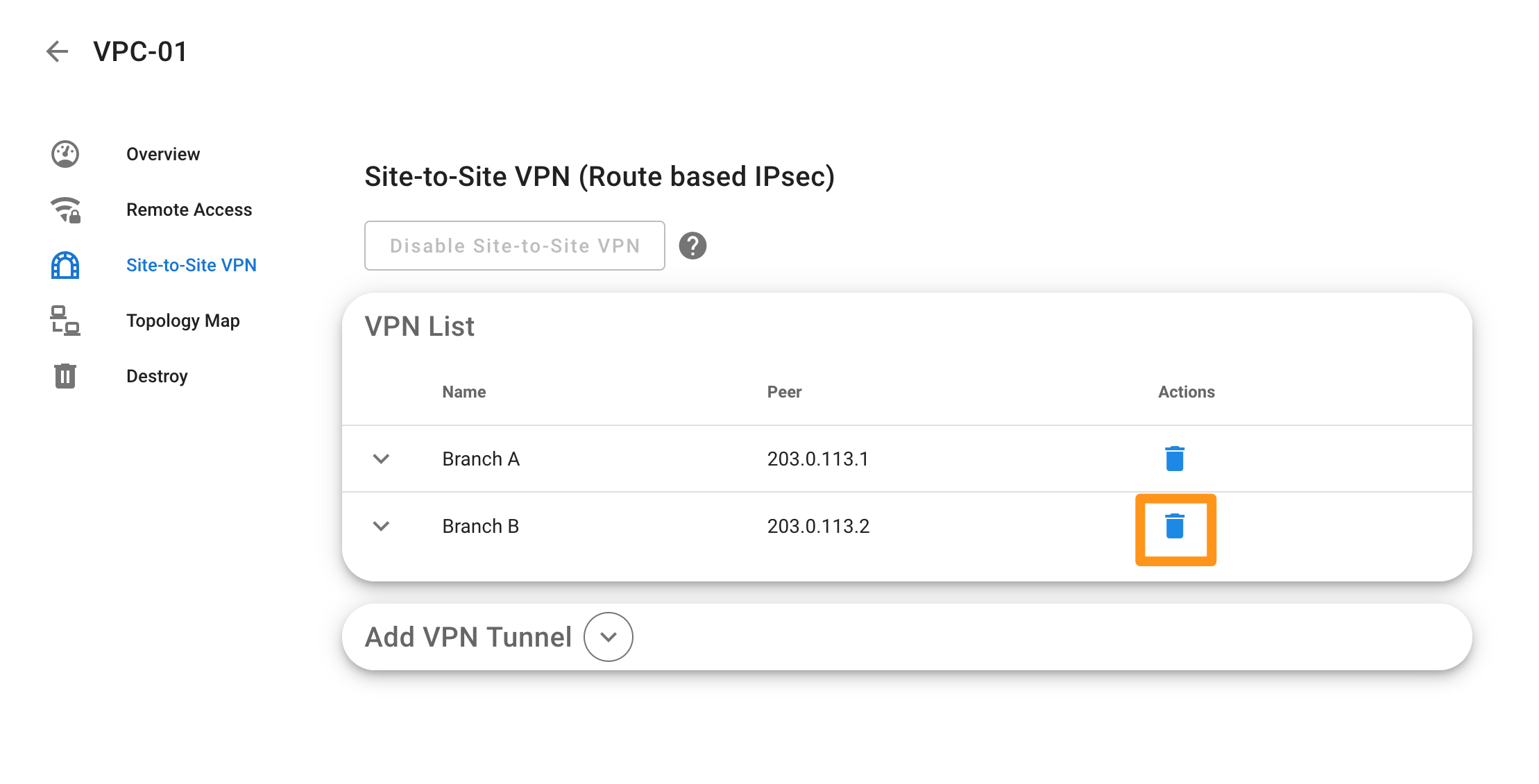

1. Click "Trash" button of the target tunnel.

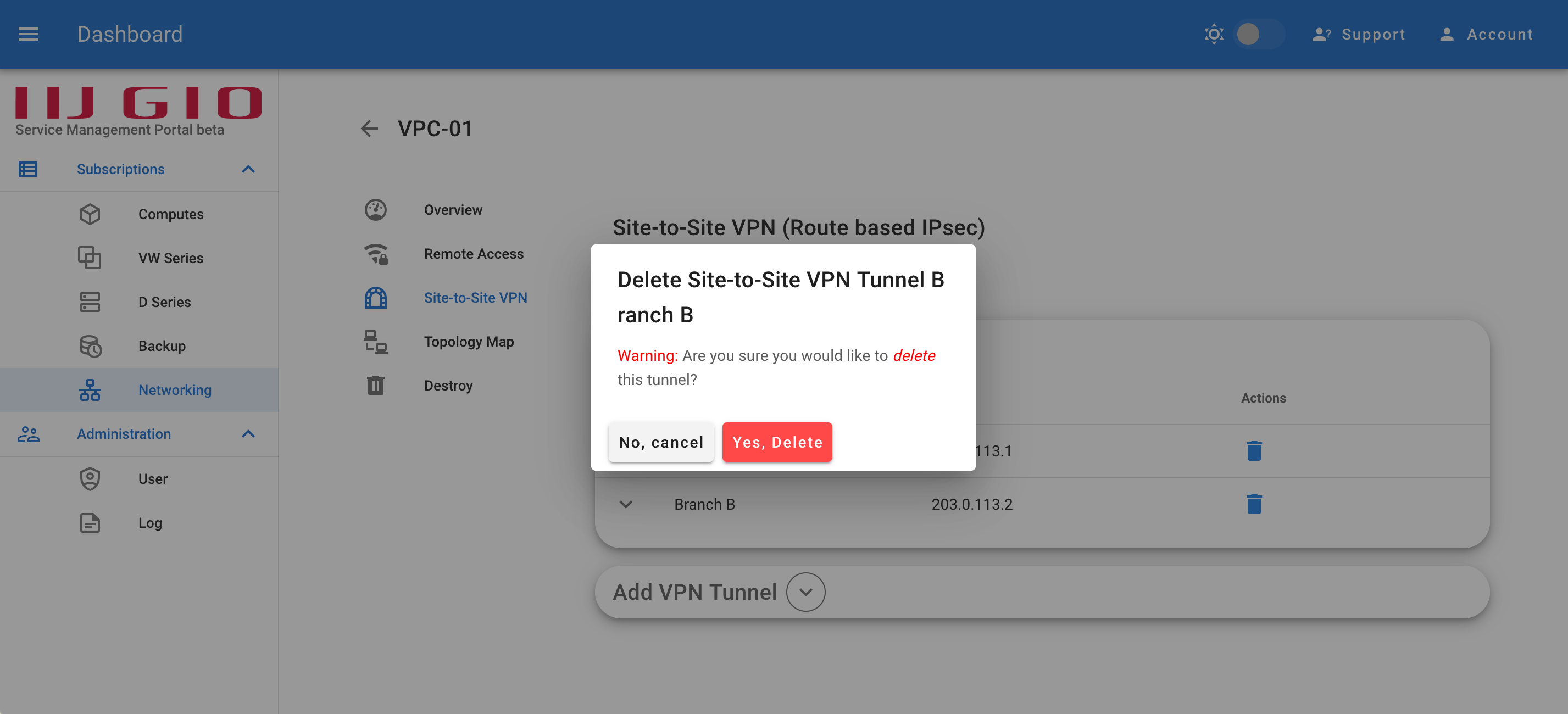

2. Read the notification carefully, then click "Yes, Delete" button.

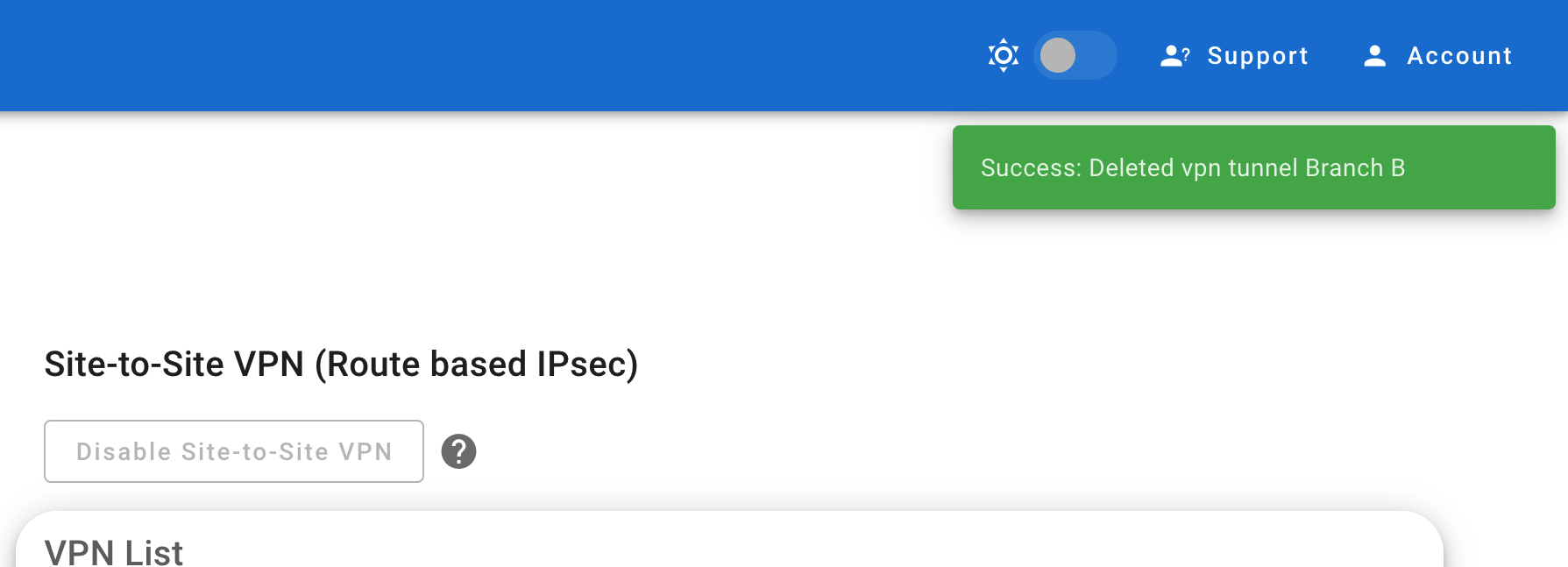

3. A notification bar appears at upper right corner of the window when the operation finishes successfully.
Disable Site-to-Site VPN Feature
1. Delete all existing tunnels.

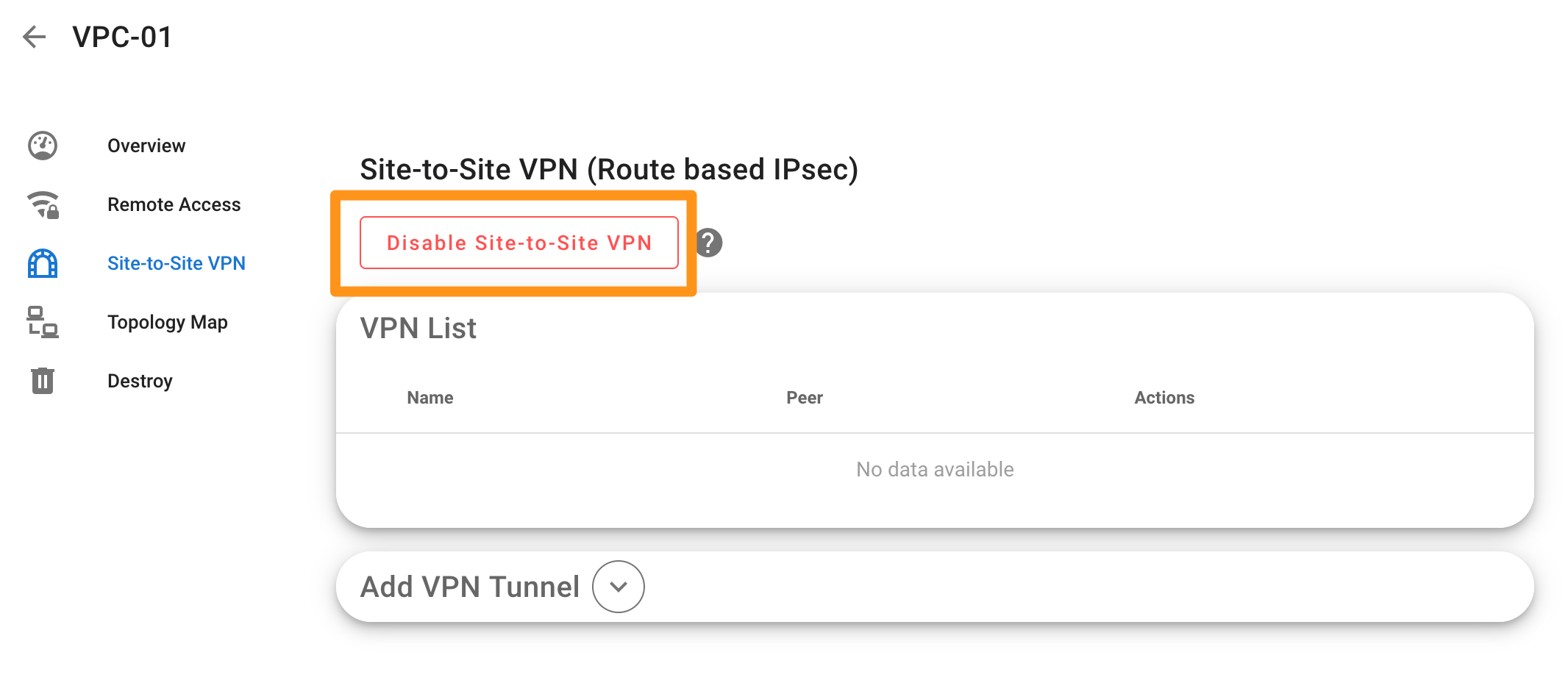

2. Click "Disable Site-to-Site VPN" button.

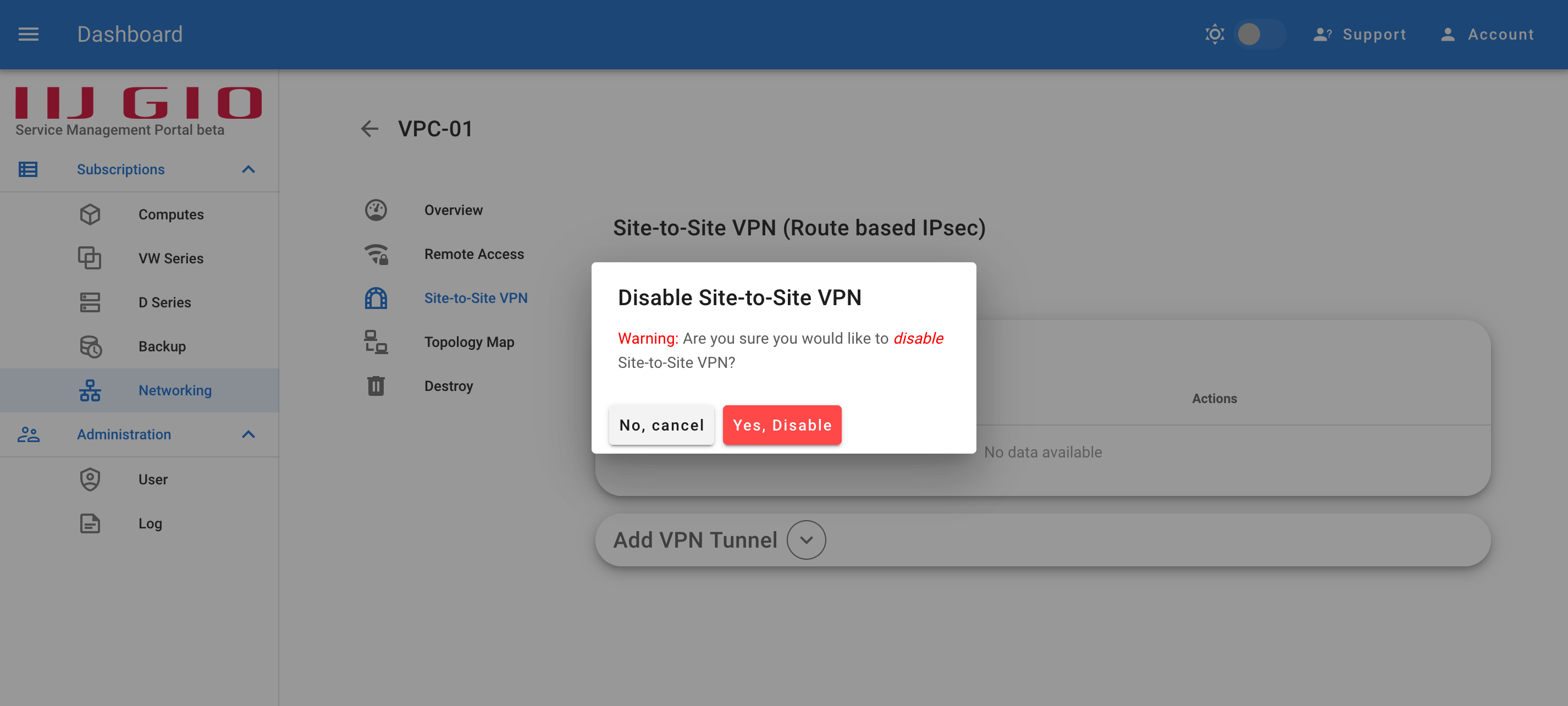

3. Read the notification carefully, then click "Yes, Delete" button.

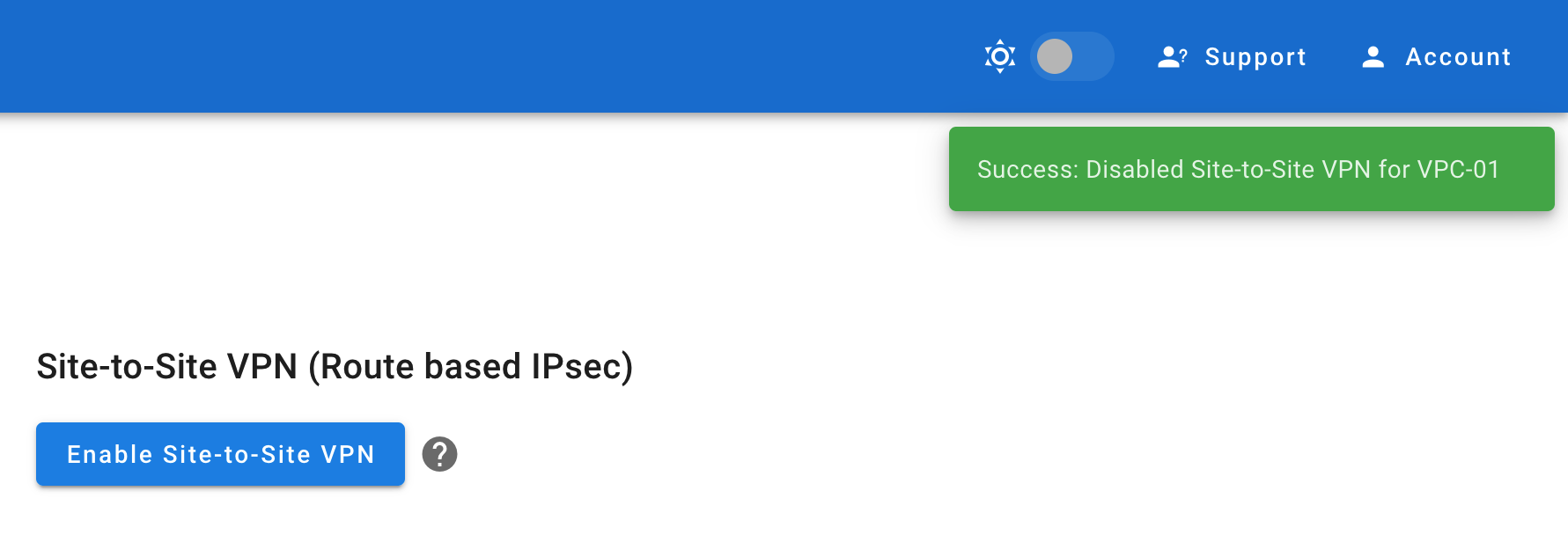

4. A notification bar appears at upper right corner of the window when the operation finishes successfully.
